Dimensions - 6110R to 6130R, With Front-Wheel Drive Axle

LX1057481-UN-03DEC14

LX1057482-UN-03DEC14

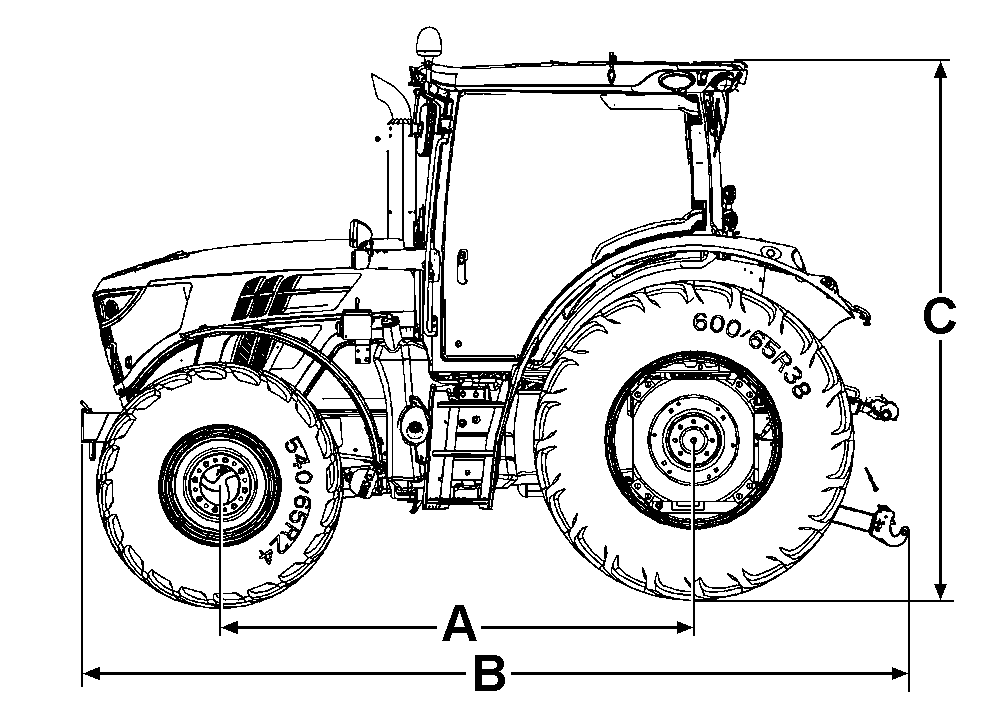

A - Wheelbase..............	2580 mm	(101.6 in.)
B - Length
• Basic weight (110 kg) to draft link in horizontal position ..............	4533 mm	(178.5 in.)
• Front weight (1150 kg) to draft link in horizontal position..............	4949 mm	(194.8 in.)
C - Height
- Maximum total height from ground to cab roof (without beacon light), with rear tires with an SRI of:
• SRI 625..............	2686 mm	(105.7 in.)
• SRI 675..............	2736 mm	(107.7 in.)
• SRI 700..............	2761 mm	(108.7 in.)
• SRI 725..............	2786 mm	(109.7 in.)
• SRI 750..............	2811 mm	(110.7 in.)
• SRI 775..............	2836 mm	(111.7 in.)
• SRI 800..............	2861 mm	(112.6 in.)
• SRI 825 ..............	2886 mm	(113.6 in.)
• SRI 875 ..............	2936 mm	(115.6 in.)

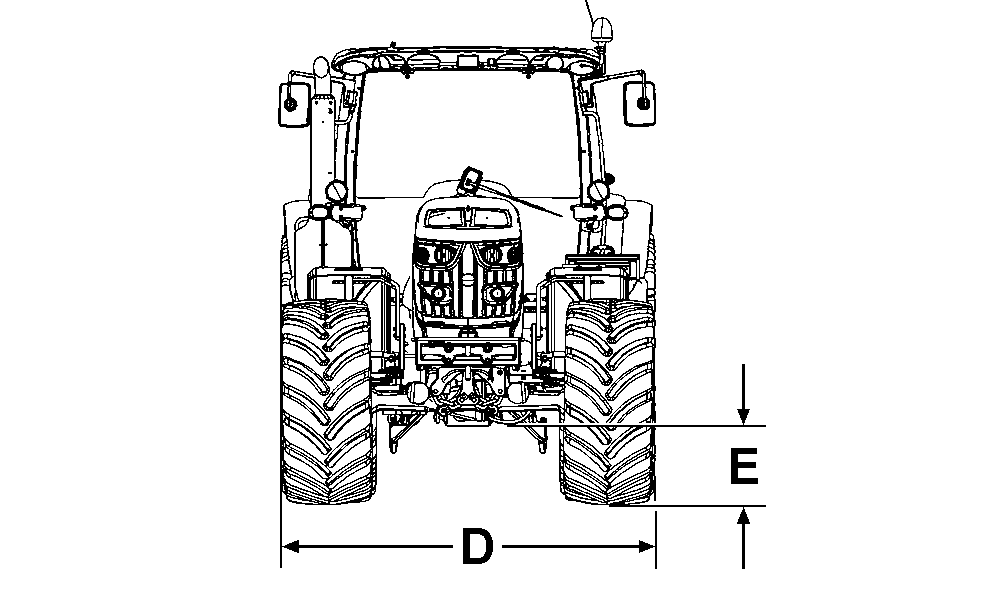

D - Width
• Front axle, two parts - flange to flange ..............	1680 mm	(66.1 in.)
• Front axle, three parts - flange to flange ..............	1780 mm	(70.1 in.)
• Front axle - maximum tread width without extension ..............	2015 mm	(79.3 in.)
• Rear axle - flange to flange ..............	1552 mm	(61.1 in.)
• Maximum width for road travel ..............	2550 mm	(100.4 in.)
E - Ground Clearance
- Maximum ground clearance with front tires with an SRI of:
• SRI 425..............	281 mm	(11.1 in.)
• SRI 525..............	381 mm	(15.0 in.)
• SRI 550..............	406 mm	(16.0 in.)
• SRI 575..............	431 mm	(17.0 in.)
• SRI 600..............	456 mm	(18.0 in.)
• SRI 625..............	481 mm	(18.9 in.)
• SRI 650..............	506 mm	(19.9 in.)
• SRI 675..............	531 mm	(20.9 in.)
• SRI 750..............	606 mm	(23.9 in.)
• SRI 775..............	631 mm	(24.8 in.)
- Maximum ground clearance with rear tires with an SRI of:
• SRI 625..............	255 mm	(10.0 in.)
• SRI 675..............	305 mm	(12.0 in.)
• SRI 700..............	330 mm	(13.0 in.)
• SRI 725..............	355 mm	(14.0 in.)
• SRI 750..............	380 mm	(15.0 in.)
• SRI 775..............	405 mm	(15.9 in.)
• SRI 800..............	430 mm	(16.9 in.)
• SRI 825 ..............	455 mm	(17.9 in.)
• SRI 875 ..............	505 mm	(19.9 in.)

IMPORTANT: Ground clearance and height of the tractor depend on the tire manufacturer, tire pressure, ballast, trailer hitches, implements attached, etc.

Before driving through gates, tunnels, bridges etc., the height of the tractor must be checked.

All dimensions are valid for tractors whose tire combination has been selected so that the main frame is horizontally oriented.
