Passenger Seat

LX1033609
LX1033609-UN-02APR04

The passenger seat is intended only for transport of a passenger in on-road operations (i.e. transport from farm to field).

A passenger seat is the only means for transporting a passenger that is approved by John Deere™.

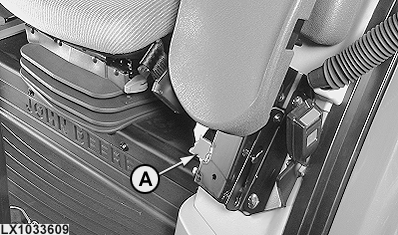

Press lock (A).

LX1033610
LX1033610-UN-02APR04

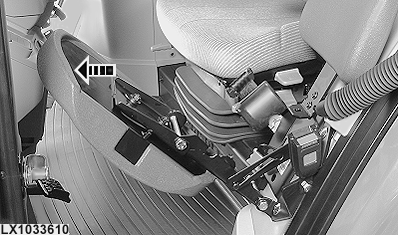

Tip seat forward.

LX1033611
LX1033611-UN-02APR04

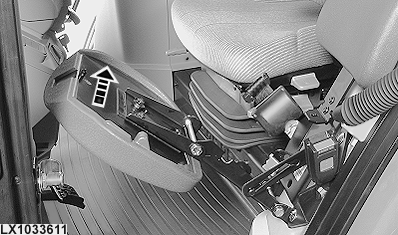

Rotate seat clockwise 90°.

LX1033612
LX1033612-UN-02APR04

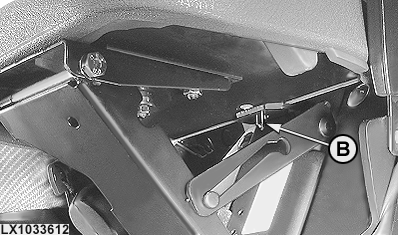

Tip seat backward. Make sure that pin (B) engages in the appropriate bore.

CAUTION: When driving, always wear the seat belt.

OU12401,EU01794-19-20130627
