Front PTO - Change Oil Filter (If Equipped)

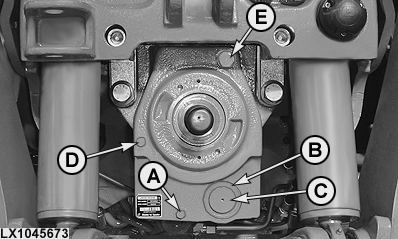

LX1045673-UN-26OCT10

NOTE: If oil smells burnt or has a very dark appearance, it needs to be changed. If chips or similar things are noticed during a filter change, the PTO clutch needs to be repaired by your authorized dealer.

Remove screws (D) and (E).

Remove snap ring (B) and cover (C).

Replace the oil filter.

Put a new seal ring on cover (C) and make sure it is seated correctly.

Install cover (C) and snap ring (B).

Remembering to include a new seal, install the oil drain screw and tighten to 20 N·m (15 lb-ft).

Fill clean transmission/hydraulic oil through screw bore (E) into the PTO housing until oil comes out of screw bore (D).

Remembering to include a new seal, install screw (D) and tighten to 20 N·m (15 lb-ft).

Remembering to include a new seal, install screw (E) and tighten to 40 N·m (30 lb-ft).
