Hitch - Hitch Dampening

LX234781-UN-25NOV15

The tractor is equipped with a hitch dampening function that prevents the tractor from pitching when traveling with a raised implement.

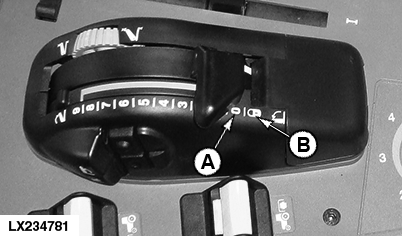

To activate the dampening, first move the depth control to position 0 (A) while the engine is running, then move it completely to the back (beyond 0) into the transport position (B) (lock symbol).

The dampening is switched off as soon as the depth control is moved out of the transport position (B), beyond 0, in the direction for lowering (1 - 9).

NOTE: Using the remote control and shutting off the engine both have the effect of switching off the hitch dampening function.

To re-activate the dampening, move the depth control out of transport position while the engine is running and move it back to transport position again.
