Trailer Hitch, Check the Guide Rails

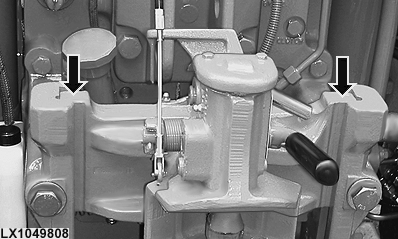

LX1049808-UN-07SEP10

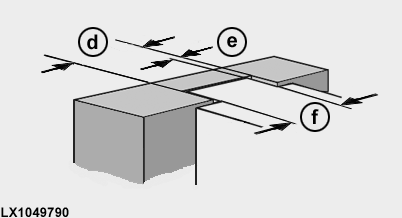

LX1049790-UN-20AUG10
d - Width of guide rail
e - Play at guide rails
f - Thickness of slide
Determine play and wear at components (d) and (f). To do this, lock the hitch jaw in all possible positions, and then measure play.
| Item | Measurement | Specification |
| Guide components in pull-and-push direction (e) | Play | max. 2.4 mm max. 0.09 in. |
| Guide rails, groove (d) in trailer mounting | Wear | max. 1.2 mm max. 0.05 in. |
| Guide rails, trailer hitch guide (f) | Wear | max. 0.8 mm max. 0.03 in. |
|
OULXA64,0002753-19-20110222 |
