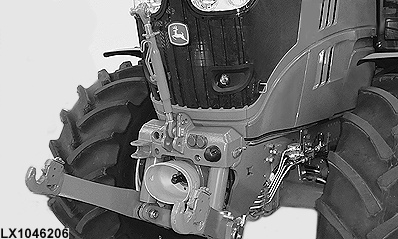

Economy Front Hitch

LX1046206-UN-22JUN11

The front hitch can be operated using selective control valve I.

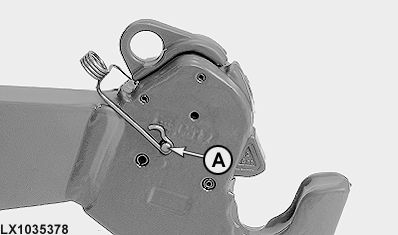

Draft link, hook latch

LX1035378-UN-18JAN05

A — Lock Parts Kit

CAUTION: When installing devices with asymmetrical loads (e.g. side boom mower decks) or when driving through high vegetation, or carrying out forest work, the draft link hook must be secured against being opened unintentionally.

Use John Deere™ AL165485 lock parts kit at both of the coupler hooks.

Draft link positions

LX1046207-UN-21JUN11

LX1046208-UN-21JUN11

LX1046209-UN-22JUN11

B — Draft links locked

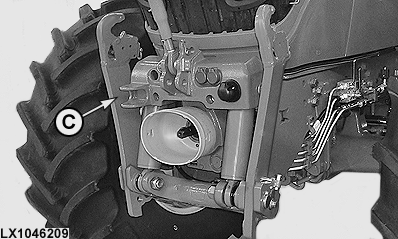

C — Draft links in transport position

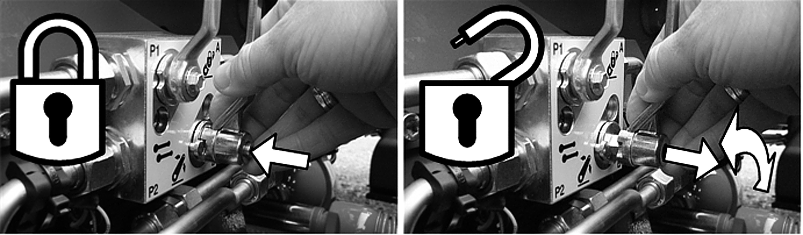

Shut-off valve

LX1054666-UN-10APR12

LX1046210-UN-22JUN11

LX1046211-UN-22JUN11

The additional shut-off valve allows the following settings:

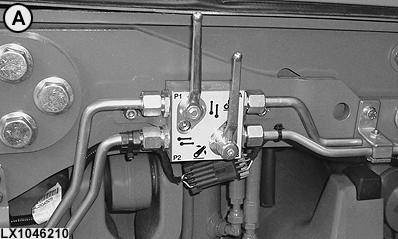

A — Oil flow blocked

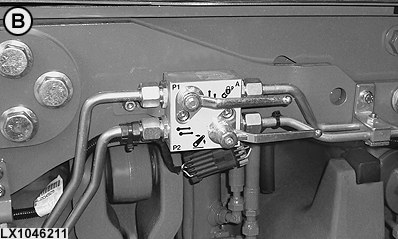

B — Raising and lowering with oil pressure

CAUTION: If SCV I is equipped with additional couplers towards the rear (for operation of rear implements), the shut-off valve must be blocked (A) before rear implements are operated using SCV I.

NOTE: When a chain is used to limit the cutting height on a mowing unit, avoid damage by selecting setting (B). Additionally, set SCV I to float position to lower the mowing unit.

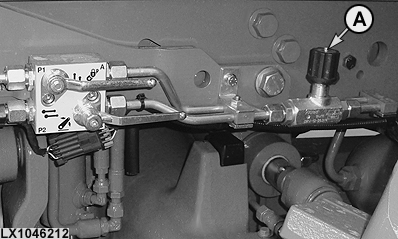

Rate-of-drop valve

LX1046212-UN-22JUN11

Rate-of-drop valve (A) allows controlled lowering of the front hitch. Setting of the rate-of-drop valve is infinitely variable between the open position (turned all the way counterclockwise) and the completely closed position (turned all the way clockwise) (10 turns maximum).

Rate-of-drop has been set to approx. 5-6 seconds at the factory (4 turns counterclockwise).

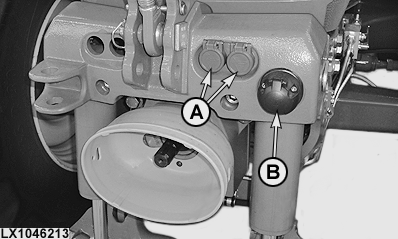

Couplers and seven-terminal socket (ECE) at the front

LX1046213-UN-22JUN11

A — Couplers, selective control valve II

Couplers (A) are provided with oil via SCV II.

CAUTION: When a front-mounted implement is connected, do not connect any other user to selective control valve II.

CAUTION: The hydraulic system has a maximum stand-by pressure of 20000 kPa (200 bar; 2900 psi). For your own protection and to assure proper functioning of the system, use only genuine John Deere parts.

The couplers allow hydraulic hose to be connected and disconnected only if no pressure is present.

To connect the hose union, press it firmly into the coupler.

To disconnect the hose, give it a firm pull.

B — Seven-terminal socket (ECE) at the front

The socket is used to connect electrical devices installed on the implement. Always use auxiliary light on towed implement when front tractor signals and other lights are obscured.

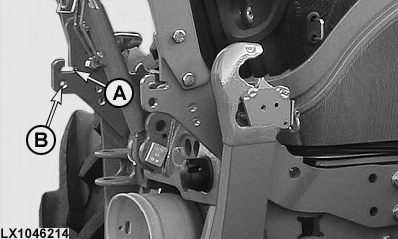

Brackets for mower deck springs (if equipped)

LX1046214-UN-22JUN11

A — Opening for chain

B — Bore for spring

Opening (A) allows attachment of the chain for cutting height limit.

NOTE: In this case, avoid damage by selecting setting (B) for the shut-off valve. Additionally, set SCV I to float position to lower the mowing unit.

The spring for dampening can be hooked into bore (B).

Safety

CAUTION: It is important to observe the maximum permissible axle loads and the load capacity of the tires when using the front hitch.

CAUTION: A front-mounted implement adversely affects the driving characteristics of the tractor. Adjust vehicle handling to the change in driving dynamics of the tractor.

CAUTION: Always lower front-mounted implements to the ground when the tractor is left unattended.

CAUTION: Lower front-mounted implement to the ground and stop the engine before connecting the implement to one of the front quick couplers.

CAUTION: Always bear in mind that the dimensions of the tractor front have changed, especially when leaving the farm or the fields and on roads and junctions. If in doubt, ask for a second person to assist.

CAUTION: Comply with lighting requirements. Headlights and turn signals may be concealed by the front-mounted implement. In this case, use additional lighting.

CAUTION: When the front hitch is not in use, the draft links should always be folded up.
