Sway Blocks (If Equipped)

LX1053308-UN-20SEP11

LX1037173-UN-29SEP05

LX266795-UN-15MAR16

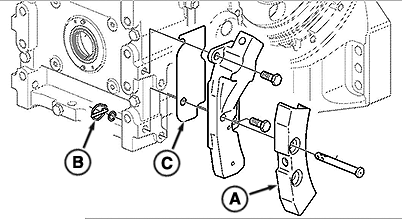

A - Sway Block

B - Quick-Lock Pin

C - Shim

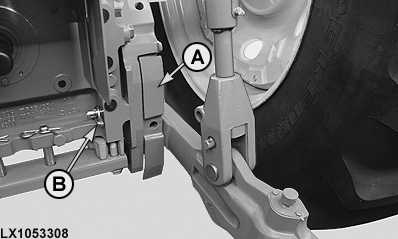

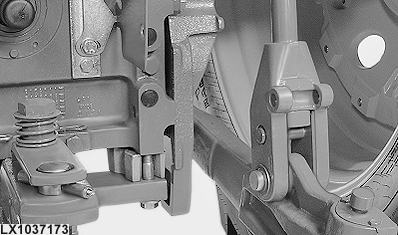

The sway blocks (A) limit the side sway of the draft link during work and transport.

Sway blocks must be fitted when working with attachments which follow exactly the line of the tractor.

NOTE: If the side sway is too large in spite of installed sway blocks, additional shims (C) can be installed between the PTO housing and the bracket of the sway blocks. Shims can be obtained from your authorized dealer.

If the implements (plow, disk harrow, etc.) have side sway in the working position, remove quick-lock pin (B) and take off the sway blocks.

In this case, the draft links have side sway in working position; in transport position they are locked.

IMPORTANT: The draft links must NOT come into contact with the tires at any point in their operating range (from lowest position to highest).
