Lubricate Rear Axle Bearings

LX1053342-UN-21DEC11

IMPORTANT: Carry out this service after every ten hours of operation when working under very wet and muddy conditions.

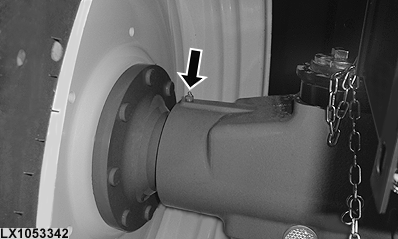

Lubricate both bearings with 6 to 8 strokes of the grease gun. Use John Deere multi-purpose grease.
