Opening Service Doors

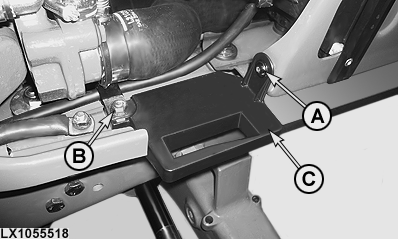

LX1055518-UN-28FEB12

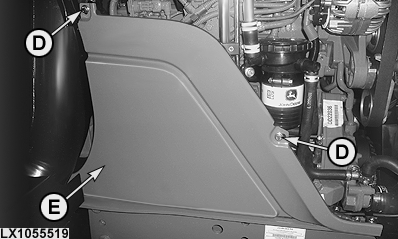

LX1055519-UN-28FEB12
A - Screw
B - Nut
C - Shield
D - Screw
E - Service Door
Remove screw (A) and nut (B).Remove shield (C).
Take out screws (D).
Remove service door (E).
|
OULXA64,000291E-19-20120301 |
