Front-Wheel Drive Axle — Check Toe-In

LX202536
LX202536-UN-29JUL13

LX1046204
LX1046204-UN-16JUN11

  1. Make sure wheels are in the straight forward position by driving tractor in a straight line for approx. 15 m (50 ft).

    CAUTION: Keep the engine switched off while making the measurements, and secure the tractor so that it cannot roll away.

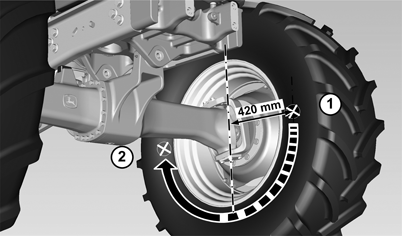

  2. Starting from the center of the wheel, measure 420mm (16.5 in.) and make an X mark (1) on the inside of both wheels. The two marks must be at axle height (half the wheel diameter).

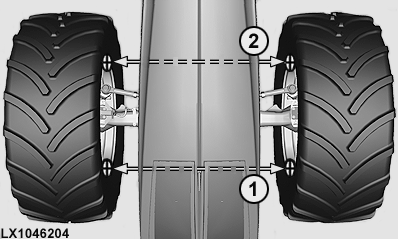

  3. Measure distance (1) at the front from the right to left wheel and make a note of the measurement.

  4. Roll the tractor forward by half the circumference of the front wheel, bringing the (X) mark to the rear (2).

  5. At the rear, measure distance (2) and make a note of the measurement.

Dimension at the front (1) must correspond to dimension at the rear (2). A deviation of ± 1.5 mm (0.06 in.) is permissible.

OULXA64,0002B5B-19-20150901
