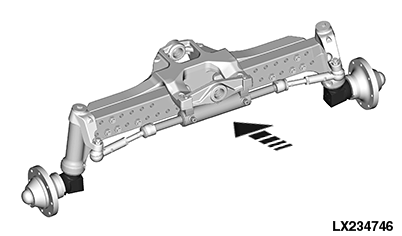

Adjustable Front Axle Type A - Tread Widths Without Axle Extensions

LX234746
LX234746-UN-28AUG15

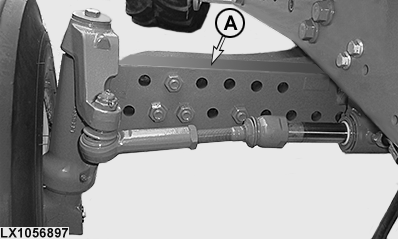

Adjustable Front Axle Type A

LX1056897
LX1056897-UN-04JUN13

Adjustable Front Axle without Axle Extensions

The adjustable front axle (A) without axle extensions can be set to any of 7 tread widths.

IMPORTANT: For front loader work, select a tread width between 1700 - 1860 mm (66.9 - 73.2 in.).

If wheels are removed to adjust tread, tighten wheel bolts to 310 Nm (230 lb-ft).

After adjusting tread, tighten axle bolts to 400 Nm (300 lb.-ft.).

IMPORTANT: After a tread adjustment, check the torque of these bolts after 4 and 8 hours of operation, and frequently during the next 100 hours of operation.

Tires

Position of tire valve

Axle hole position


1

2

3

4

5

6

10.00-16

Outside

1524 mm

(60.0 in.)

1626 mm

(64.0 in.)

1728 mm

(68.0 in.)

1830 mm

(72.0 in.)

1932 mm

(76.1 in.)

2034 mm

(80.1 in.)

Inner

1483 mm

(58.4 in.)

1585 mm

(62.4 in.)

1687 mm

(66.4 in.)

1789 mm

(70.4 in.)

1891 mm

(74.4 in.)

1993 mm

(78.5 in.)


11.00-16

Outside

1522 mm

(59.9 in.)

1624 mm

(63.9 in.)

1726 mm

(67.9 in.)

1828 mm

(72.0 in.)

1930 mm

(76.0 in.)

2032 mm

(80.0 in.)

Inner

1481 mm

(58.3 in.)

1583 mm

(62.3 in.)

1685 mm

(66.3 in.)

1787 mm

(70.3 in.)

1889 mm

(74.4 in.)

1991 mm

(78.4 in.)


11L-15

Outside

1527 mm

(60.1 in.)

1629 mm

(64.1 in.)

1731 mm

(68.1 in.)

1833 mm

(72.2 in.)

1935 mm

(76.2 in.)

2037 mm

(80.2 in.)

Inner

1486 mm

(58.5 in.)

1588 mm

(62.5 in.)

1690 mm

(66.5 in.)

1792 mm

(70.6 in.)

1894 mm

(74.6 in.)

1996 mm

(78.6 in.)

OULXA64,0002E9C-19-20150902
