Adjustable Front Axle Type A - Adjust Toe-in

1.
   LX234746-UN-28AUG15

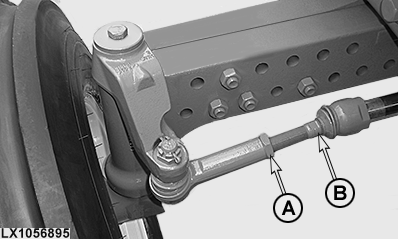

   Adjustable Front Axle Type A


   LX1056895-UN-04JUN13

   A - Lock Nut

   B - Rod

   Align front wheels for travelling straight ahead, shut off the engine, move the transmission to park position and remove the ignition key.

---




2. Unfasten lock nut (A).

3. NOTE: Adjust toe-in to 3 - 9 mm (0.12 - 0.35 in.). See Check Toe-In in this Section.

   Turn tie rod (B) to obtain desired toe-in or toe-out.

   Item	Measurement	Specification
   Maximum toe-in or toe-out	Distance	3 - 9 mm (0.12 - 0.35 in.)

4. Tighten lock nut (A) to 250 Nm (185 lb-ft). Hold tie rod firmly when tightening the lock nut.
