Mechanical Multi-Function Lever with Dampening

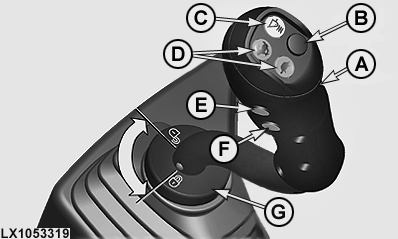

LX1053319-UN-10OCT11

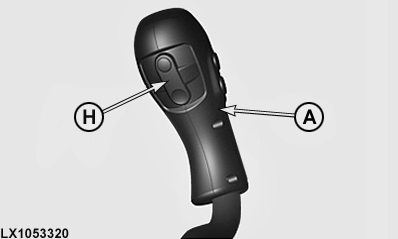

LX1053320-UN-10OCT11

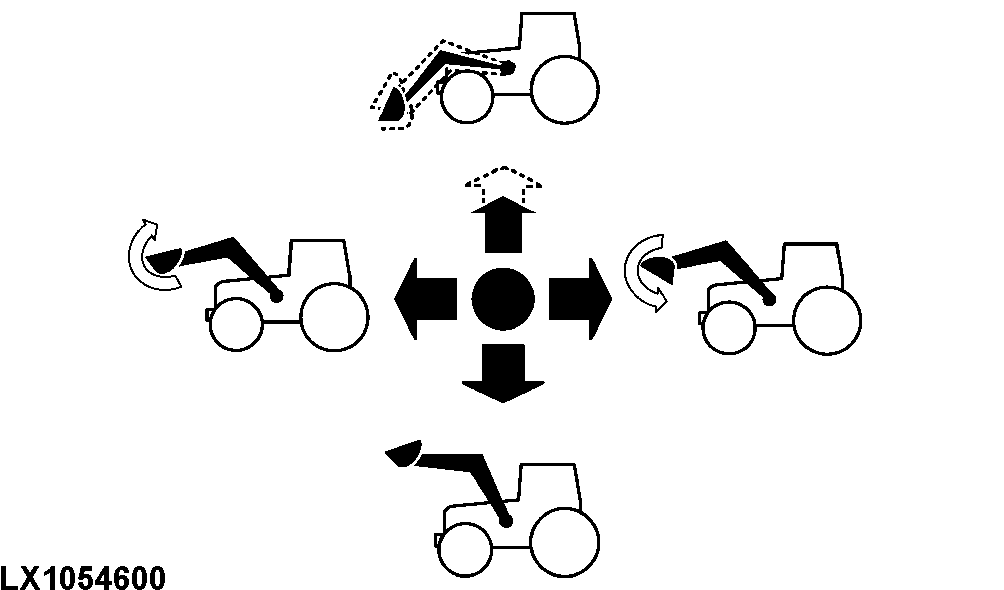

LX1054600-UN-10OCT11

A - Multi-Function Lever

B - Memo Button (not for North America)

C - Button for Activating Front-Loader Dampening

D - Gear-Shift Buttons

E - Button, Diverter Valve 1 on Front-Mounted Implement (not for North America)

F - Button, Diverter Valve 2 on Front-Mounted Implement (not for North America)

G - Locking Ring (Shipping Lock)

H - Raise/Lower Rocker Switch

IMPORTANT: The multi-function lever and the SCVs must be locked when the tractor is driven on public roads.

For more information, see the “Additional Equipment - Hydraulic System” Section.

NOTE: The displayed multi-function lever is equipped with optional controls.
