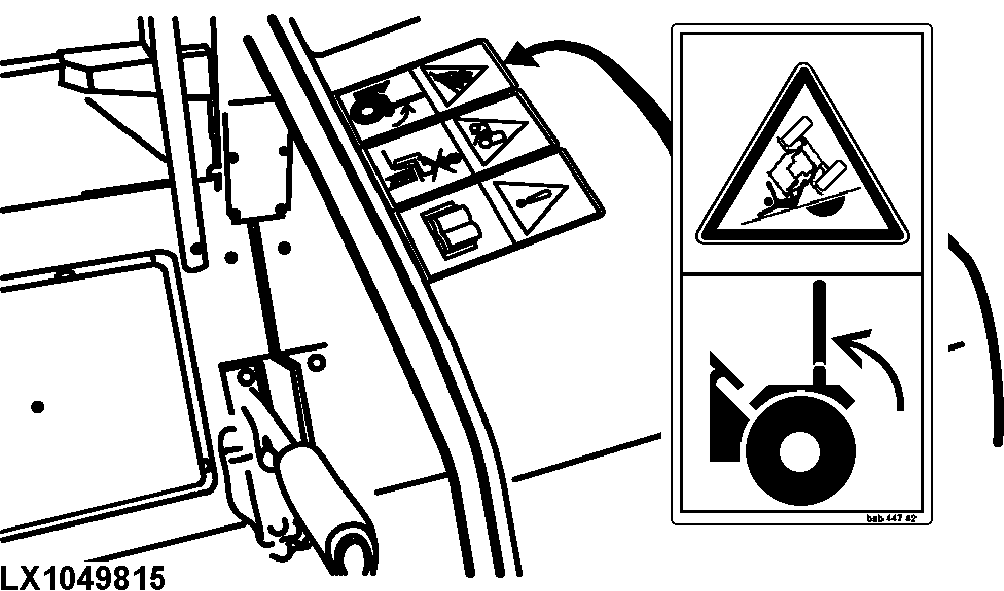

Rollover Protective System in Normal Position

LX1049815-UN-18NOV10

CAUTION: Avoid serious crush injuries or death resulting from the machine rolling over.

Use the foldable rollover protective system and seat belt properly.

If this machine is equipped with a foldable rollover protective system (ROPS), keep the ROPS in the fully extended and locked position.

ALWAYS wear a seat belt when operating with the rollover protective system in the fully extended position.

• Hold the latch and pull the seat belt across the body.
• Insert the latch into the belt buckle. Listen for a click.
• Tug on the seat belt to make sure the belt is securely fastened.
• Tension the seat belt across the hips.

Proceed with utmost caution when driving the machine with the rollover protective system folded (e.g. when pulling into a low building). DO NOT USE seat belt with the rollover protective system folded. Return the rollover protective system to the raised, fully extended position as soon as the machine is operated under normal conditions.
