Mechanical Selective Control Valves (SCV) - Controls

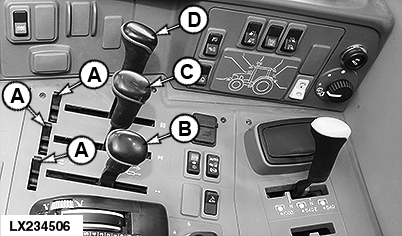

LX234506-UN-06MAR15

A - Lever for Locking the Control Levers

B - Control Lever for Selective Control Valve, SCV I

C - Control Lever for Selective Control Valve, SCV II

D - Control Lever for Selective Control Valve, SCV III

IMPORTANT: The multi-function lever and the SCVs must be locked when driving on public roads.

For more information, see Section "Additional Equipment - Hydraulic System".
