Coolant Temperature Gauge
LX234585-UN-26FEB15

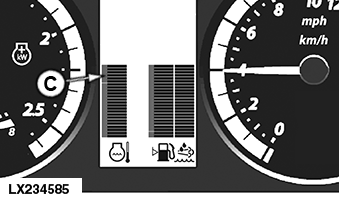

If the gauge of this instrument lights up in the red warning
zone (C), the engine is overheating. Immediately reduce load or shift
to a lower gear. If the gauge does not go back immediately, stop the
tractor and run the engine at low idle. If that does not help, shut
off the engine, determine the cause of overheating (coolant level
low, dirty radiator or dirty radiator screen), and rectify.
|
|
OULXA64,00035B8-19-20150302
|
|
