Park Brake

LX1048560-UN-02NOV09

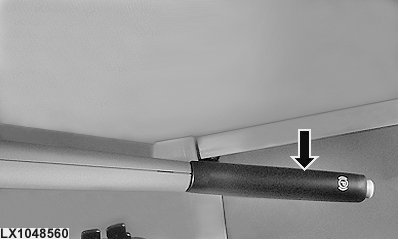

In the event of service brake failure, the park brake can be used to brake the vehicle. Pull lever (A) upward to obtain a braking effect.

IMPORTANT: Engage the park lock and apply the park brake to park the tractor.

When parking, the trailer brake is applied via the park brake.

NOTE: When the park brake is engaged, the indicator light for the park brake is lit.
