Multi-Function Lever, Electrical

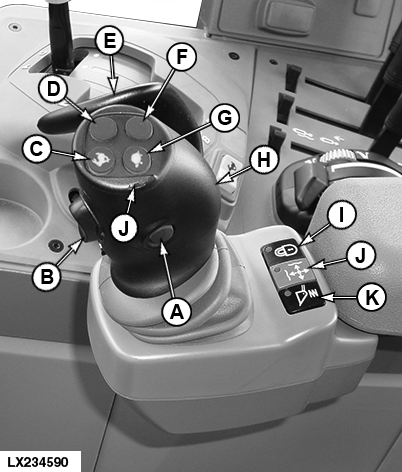

LX234590-UN-27FEB15

A - Button for Diverter Valve 1¹

B - Raise/Lower Rocker Switch

C - Gear-Shift Button, Changing Up

D - Button for Diverter Valve 2²

E - Hand Flap for Activating the Multi-Function Lever

F - Memo Button²

G - Gear-Shift Button, Changing Down

H - Multi-Function Lever

I - Lock Button, Multi-Function Lever ON/OFF

J - Indicator Light, Multi-Function Lever Active

K - Button for Activating Front-Loader Dampening¹

CAUTION: To avoid sudden movements and possible accidents, never operate front loaders in combination with iTEC™.

IMPORTANT: The multi-function lever and the SCVs must be locked when the tractor is driven on public roads.

For more information, see "Multi-Function Lever, Electrical" in Section "Additional Equipment - Hydraulic System".

NOTE: The displayed multi-function lever is equipped with optional controls.
