Front-Wheel Drive - Controls

LX234587
LX234587-UN-04MAR15

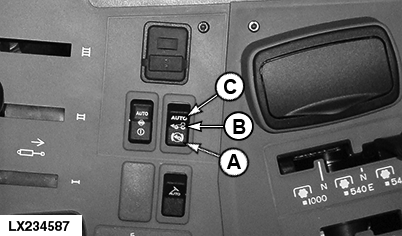

A - Disengaging Front-Wheel Drive

B - Engaging Front-Wheel Drive (Switch in Center Position)

C - Front-Wheel Drive, Selecting Automatic Mode


For more information, see Section "Operating the Tractor — General".

OULXA64,00035C0-19-20150303
