Differential Lock - Controls

LX234588-UN-04MAR15

LX234589-UN-04MAR15

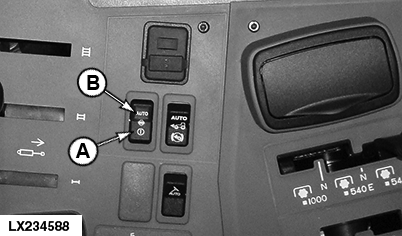

A - Switching the Differential Lock On or Off Manually

B - Switching the Differential Lock On or Off Automatically

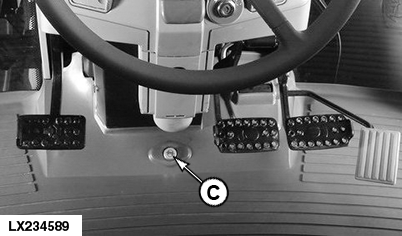

C - Button for Switching the Differential Lock On Manually¹

For more information, see Section "Operate the Tractor — General".
