Cigarette Lighter and Ashtray

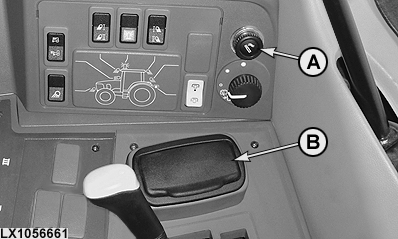

LX1056661-UN-05SEP12

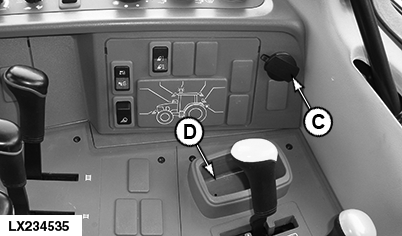

LX234535-UN-06MAR15

A - Cigarette Lighter

B - Ashtray

C - 12-Volt Power Outlet Socket

D - Storage Tray

To remove ashtray (B), open the ashtray and pull it up. Storage tray (D) may be equipped instead of the ashtray.

Cigarette lighter (A) may be used as a 12-volt power outlet socket. A 12-volt power outlet socket (C) may be equipped instead of the cigarette lighter. An electrical consumer with a requirement for max. 120 watts can be connected at the 12-volt power outlet socket or at the cigarette lighter.
