ISOBUS Socket

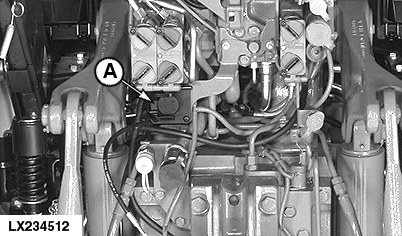

LX234512-UN-10FEB15

Implements meeting ISO Standard 11783 may be connected to socket (A). Read the operator's manual provided by the implement manufacturer and observe all safety instructions in the manual and on the implement prior to use.

IMPORTANT: When operating electrical consumers with high current draw, the maximum permitted current load of the supply circuit must not be exceeded. Remember, total load comprises the sum of all the current consumers connected to the on-board circuit at any one time. This also applies if the consumers are connected to the on-board circuit at different sockets.

NOTE: The road lights and worklights of an ISOBUS implement can be controlled via the ISOBUS socket. For more information, see "Lighting System - Worklights of ISOBUS Implement " in Section "Lighting" and the relevant operator's manual of the ISOBUS implement.
