Parking the Tractor

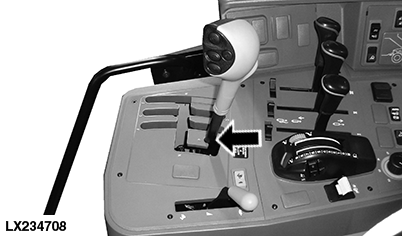

LX234708-UN-17JUN15

Range-Shift Lever with PowrQuad™ / AutoQuad™ (Version 1)

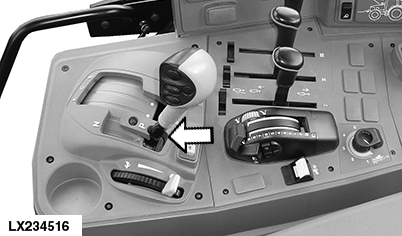

LX234516-UN-06MAR15

Range-Shift Lever with PowrQuad™ / AutoQuad™ (Version 2)

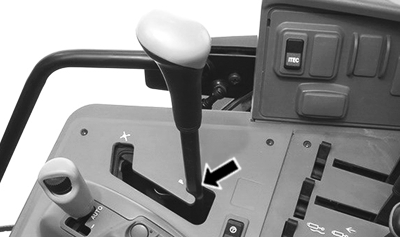

LX266813-UN-01JUN16

Park Lock Lever with CommandQuad™ PLUS

Engage park lock and apply park brake when parked or operating the tractor from a stationary position.

IMPORTANT: Engage park lock only when the tractor is stationary.

IMPORTANT: On tractors with air brakes, engaging the park brake activates the trailer brake.

NOTE: When engaging park lock on slopes, remember to actuate the foot brake as well.
