Hitch - Remote Control

LX1042709-UN-04JUL07

LX234554-UN-11MAR15

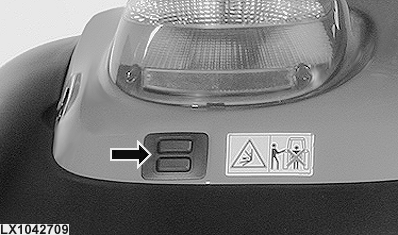

This switch allows the hitch to be operated from outside the cab. For safety reasons, the hitch rises and drops at a slower rate. The height and depth values are ignored.

Push upper switch - Raise implement

Push lower switch - Lower implement

NOTE: Once the remote control has been activated, the hitch is prevented from moving accidentally. To prepare the hitch for operation again, either:

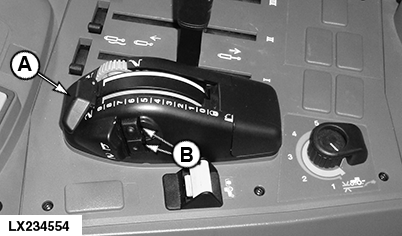

• move depth control (A) to the position that corresponds to the position of draft links,
• move control (A) to one of the end positions, or
• press the hitch control switch (B).
