Hitch - Adjust Rate of Drop

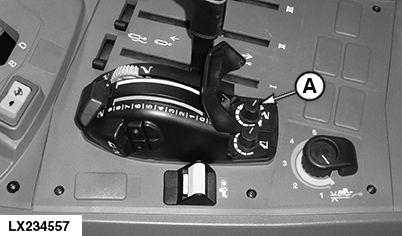

LX234557-UN-11MAR15

The rate of drop of attached implements can be adjusted with the rate of drop control knob (A).

The rate-of-drop varies with the setting of control (A) and the weight of the mounted implement. The heavier the implement, the faster the rate-of-drop and the lighter the implement, the slower the rate-of-drop.
