Hitch - Direct Control

LX234561-UN-16FEB15

TS229-UN-23AUG88

CAUTION: Direct actuation of hitch must be performed ONLY while sitting on the operator's seat.

In the event of electrical failure of the rear hitch's electrical control system, the rear hitch can be actuated as follows:

Run the engine. Take off the protective cap.

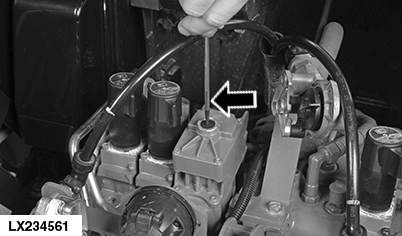

From the operator's seat, use a flat tip screwdriver or suitable coin to turn the screw until the rear hitch is raised or lowered to the desired position.

NOTE: It is possible to lower the hitch by direct actuation even when the engine is not running.

See an authorized dealer.
