Connect an Implement to the Rear PTO

LX1036484-UN-23JAN06

LX234573-UN-11MAR15

CAUTION: Shut off engine and disengage PTO before attaching PTO-driven attachment.

CAUTION: High-inertia implements do not come to a standstill the moment the PTO is shifted to the disengaged position. Do NOT approach the implement while it is coasting down. Do not work on the implement until it has stopped.

CAUTION: Before attempting to clean, adjust or lubricate a PTO-driven machine, the three-point hitch or the universal-jointed shaft, always make sure the PTO is switched off, the tractor engine is shut off and the ignition key is removed.

IMPORTANT: See relevant operating instructions in this Section.

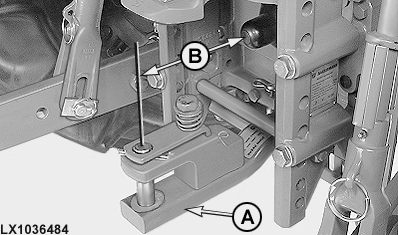

1. Align swinging drawbar (A) parallel to PTO shaft and lock it in position.
2. Distance (B) between the end of the PTO shaft and the hole in the drawbar end varies depending on which type of PTO stub shaft is used. The distance must be correct.

   PTO stub shaft	Distance to drawbar
   	Category 2
   Type 1 / 6 Splines..............	350 mm (13.8 in.)
   Type 2 / 21 Splines..............	400 mm (15.7 in.)

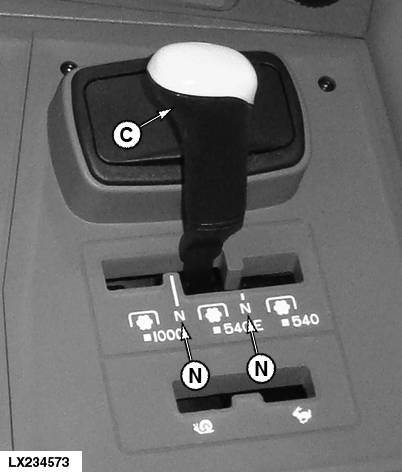

If the PTO splines are not aligned with the grooves in the universal-jointed shaft, keep the engine shut off, move lever (C) to N and turn the PTO shaft manually to the correct position.
