Lighting System - Worklights of ISOBUS Implement

LX1056630-UN-26JUN12

LX1056631-UN-05SEP12

LX234603-UN-17MAR15

IMPORTANT: It is not permitted to use worklights on public roads.

If the engine is switched off, the worklights remain on and do not automatically switch off. If the engine is going to be in standstill for an extended period, switch off the worklights in advance.

NOTE: On tractors with ISOBUS, the road lights and worklights of the implement can be controlled via the ISOBUS socket. For more information, see the operator's manual of the relevant ISOBUS implement.

There are four different customized lighting options to operate the worklights of the ISOBUS implement. These lighting options can be assigned and saved through the input box of diagnostic addresses TEC 000031 to TEC 000034. See also "TEC - Control Software" in Section "Diagnostic Trouble Codes and Customization".

If several worklights are to be operated together within a customized lighting option, the corresponding digit in the input box must be set to "1".

0000001	Additional Implement Worklights, Option 2	X
0000010	Additional Implement Worklights, Option 1
0000100	Implement Worklight, Front Right	X
0001000	Implement Worklight, Front Left	X
0010000	Implement Worklight, Right Side
0100000	Implement Worklight, Left Side
1000000	Implement Worklights, Rear	X

Example:

The following worklights (X) shall be on:

• Additional Implement Worklights, Option 2
• Worklight, front right
• Worklight, front left
• Worklight, rear

Enter 1001101 into the input box.

Switching on one of the four customized lighting options is done by using the following switch combinations:

	Switch Positions
Lighting option	I	II	III	IV
Diagnostic address	TEC 000031	TEC 000032	TEC 000033	TEC 000034
Key switch position	On	On	On	On

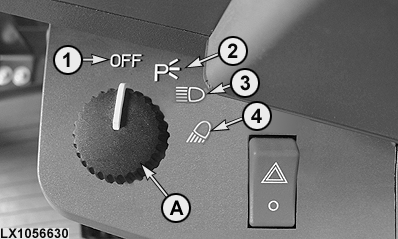

Position of light switch (A)	4	4	4	4

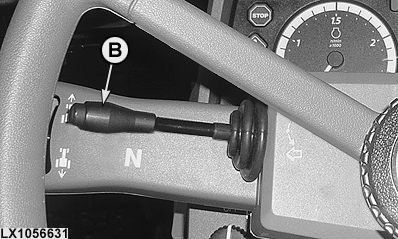

Position of high/low-beam headlight switch (B)	Low beam	High beam	Low beam	High beam

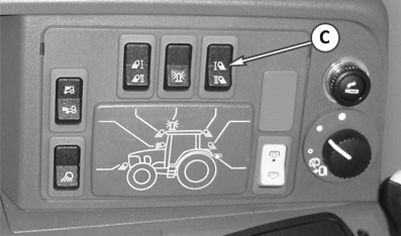

Position of worklight switch (C)	Position I	Position I	Position II	Position II
