Lighting System - Overview of the Lights (Tractors with Cab)

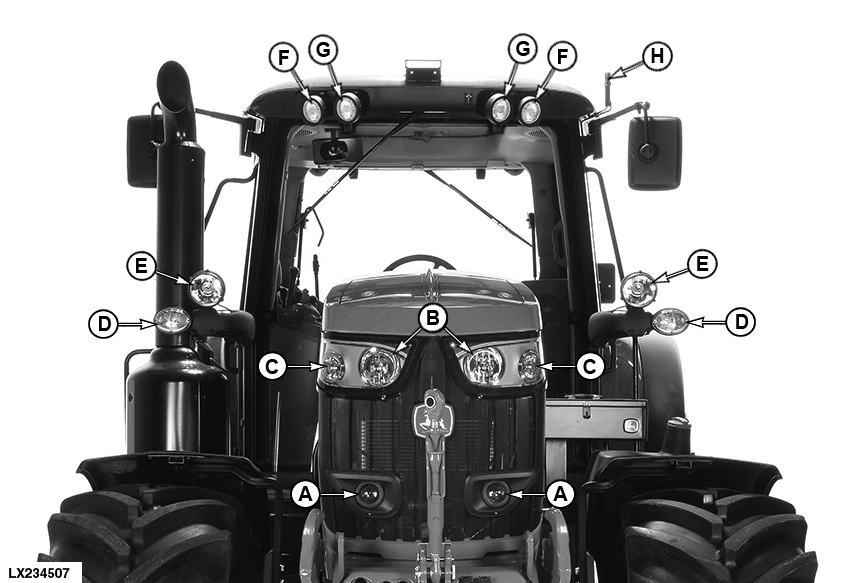

LX234507-UN-09FEB15

A	Headlights, Low Beam (on Both Sides of Engine Hood)	E	Additional Headlight1 (Low Beam and High Beam) or Worklight1 (on Both Sides of Cab Frame)
B	Headlights, High Beam (on Both Sides of Engine Hood)	F	Worklights1 (on Front Outer Roof, Both Sides)
C	Worklights1 (on Both Sides of Engine Hood)	G	Worklights1 (on Front Inner Roof, Both Sides)
D	Turn-Signal and Clearance Lights (on Both Sides of Cab Frame)	H	Beacon Light1

NOTE: H9 bulbs must NOT be used in front corner worklights (C).

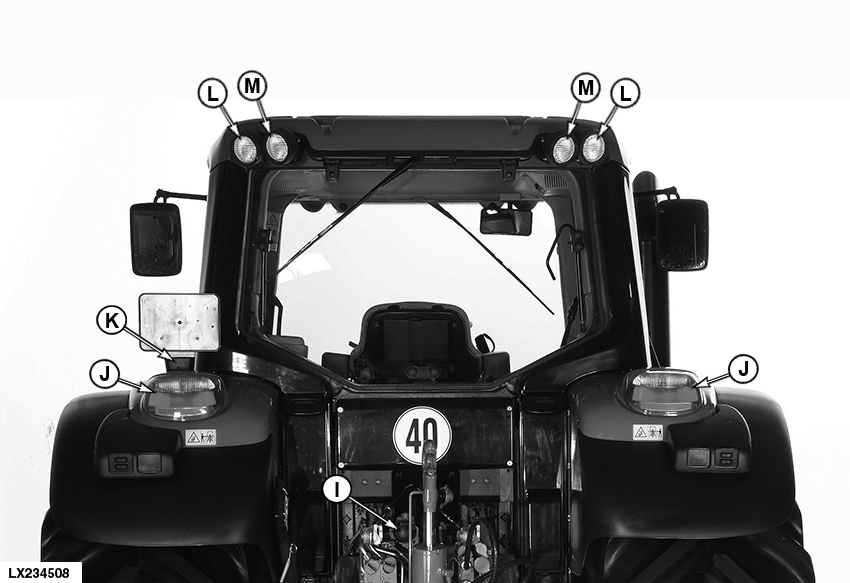

LX234508-UN-09FEB15

I	Seven-Terminal Trailer Socket for Lights	L	Worklights1 (on Rear Outer Roof, Both Sides)
J	Tail Lights/Brake Lights/Turn-Signal Lights (on Rear of Fenders, Both Sides)	M	Worklights1 (on Rear Inner Roof, Both Sides)
K	License Plate Light
