Multi-Function Lever, Electrical — Layout and Functions

LX234771-UN-16NOV15

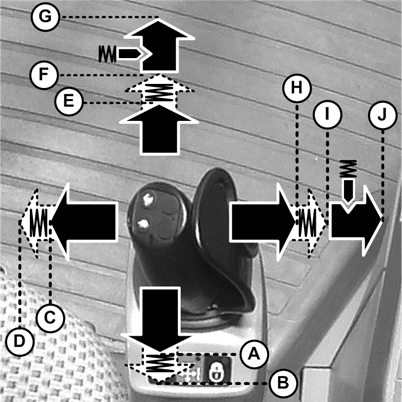

A	Pull multi-function lever rearward until the functions of the implement are performed at the desired speed. Do not move the lever beyond the kiss pressure.	F	Push the multi-function lever forward until it is beyond the perceptible point of resistance (click point) and then release it. • With SCV control: The hydraulic cylinder of the connected implement is retracted in accordance with the preset flow time and flow rate. • In loader mode: The preset flow time is ignored in loader mode.
B	Pull the multi-function lever back until it is beyond the perceptible point of resistance (click point) and then release it. • With SCV control: The hydraulic cylinder of the connected implement is extended in accordance with the preset flow time and flow rate. • In loader mode: The preset flow time is ignored in loader mode.
		G	Push the multi-function lever all the way forward and engage in detent to activate the float position. The lever remains in the detent until it is pulled back by hand.
C	Move multi-function lever to the left until the functions of the implement are performed at the desired speed. Do not move the lever beyond the kiss pressure.	H	Move multi-function lever to the right until the functions of the implement are performed at the desired speed. Do not move the lever beyond the kiss pressure.
D	Move the multi-function lever to the left until it is beyond the perceptible point of resistance (click point) and then release it. • With SCV control: The hydraulic cylinder of the connected implement is extended in accordance with the preset flow time and flow rate. • In loader mode: The preset flow time is ignored in loader mode. In loader mode, if the multi-function lever is moved to the left twice in brief succession beyond the point of resistance (click position) and held there, the bucket shake function is activated. This function stops when the lever leaves its click position.	I	Move the multi-function lever to the right until it is beyond the perceptible point of resistance (click point) and then release it. • With SCV control: The hydraulic cylinder of the connected implement is retracted in accordance with the preset flow time and flow rate. • In loader mode: The preset flow time is ignored in loader mode. In loader mode, if the multi-function lever is moved to the right twice in brief succession beyond the point of resistance (click position) and held there, the bucket shake function is activated. This function stops when the lever leaves its click position.
E	Push multi-function lever forward until the functions of the implement are performed at the desired speed. Do not move the lever beyond the kiss pressure.	J	Move the multi-function lever all the way to the right and engage it to activate the float position. The lever remains in the detent until it is pulled back by hand.
