Controls for Hydraulic Quick Release and Worklights on Front Loader (if Equipped)

CAUTION: It is not permitted to use worklights on public roads.

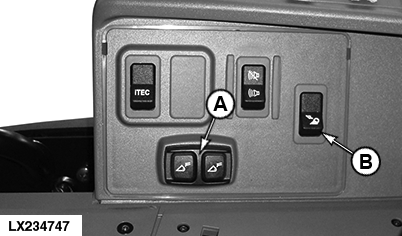

LX234747
LX234747-UN-03SEP15

A - Buttons for Hydraulic Quick Release

B - Worklight Switches

Pres the buttons (A) for locking and unlocking when changing the front loader's implement.

NOTE: Refer to the operator's manual of the front loader for more information.

The front loader worklights can be switched on and off with switch (B), as soon as the light switch is in position 4. Also see “Lighting System - Front Loader Worklights (If Equipped)” in the Lights section.

OULXA64,0003630-19-20150904
