Check the Movement Inhibitor — PowrQuad™ PLUS Transmission and AutoQuad™ PLUS Transmission

LX234717
LX234717-UN-26JUN15

Range-Shift Lever (Version 1)

LX234627
LX234627-UN-07APR15

Range-Shift Lever (Version 2)

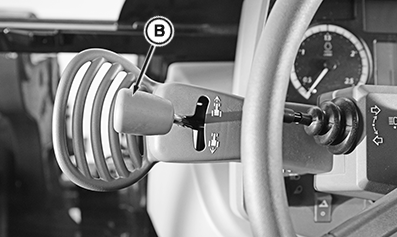

LX266663
LX266663-UN-14DEC15

A - Range-Shift Lever

B - Reverse Drive Lever

  1. Move range-shift lever (A) to neutral position.

  2. Move the reverse drive lever (B) to forward or reverse position.

  3. Start the engine and wait 6-7 seconds. The N display must light up.

  4. Depress the clutch and engage any range. Slowly release the clutch pedal. The tractor must NOT start to move. If it does, contact your authorized dealer immediately.

OULXA64,0003647-19-20160602
