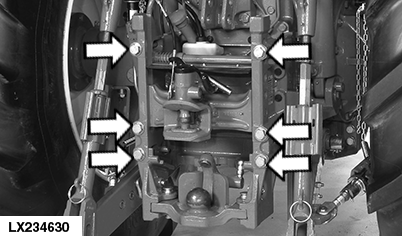

Height-Adjustable Trailer Hitch - Tighten the Screws

LX234630-UN-07APR15

Check torques of attaching screws.

Tighten the cap screws to the specified torque.

Trailer Hitch to PTO Housing

Item	Measurement	Specification
Cap Screws, up to Tractor Serial No. 865917	Torque	520 Nm (385 lb.-ft.)

Item	Measurement	Specification
Cap Screws, as of Tractor Serial No. 865918	Torque	475 Nm (350 lb.-ft.)
