Clean Cab Air Filters

LX234635-UN-07APR15

LX1057565-UN-12JUL12

LX1057566-UN-12JUL12

CAUTION: It is not permitted to clean the air filter if the cab has been retrofitted with activated carbon filters. Activated carbon filters have to be replaced with new ones.

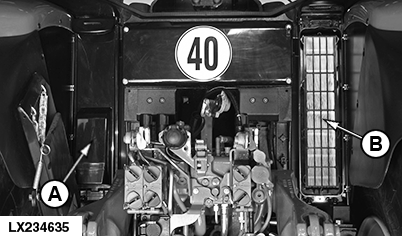

If required, remove cab air filters (B) and recirculation air filters (D) on both sides and tap them.

To do this, first remove covers (A) and (C), then remove the filters.

For installation, follow removal procedure in reverse order.

IMPORTANT: Change cab air filters every 1500 hours or 2 years.

NOTE: If the cab has been retrofitted with activated carbon filters, a service interval of 500 operating hours or once every year at the latest applies.
