Lighting System - Light Switch (Tractors without Cab)

LX1056650-UN-27JUN12

L102655-UN-15AUG94

CAUTION: Comply with local lighting regulations.

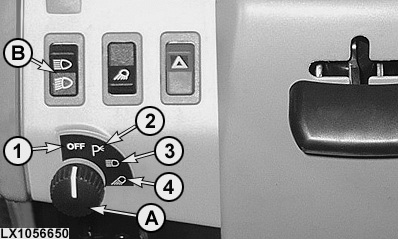

Light switch (A) can be set to the following positions:

• 1 = Lights switched off
• 2 = Parking lights switched on (clearance and tail lights)
• 3 = Headlights switched on
• 4 = Headlights switched on and worklights can be switched on

Switch headlights to low beam or high beam position using switch (B).

• Switch down = low beam
• Switch up = high beam

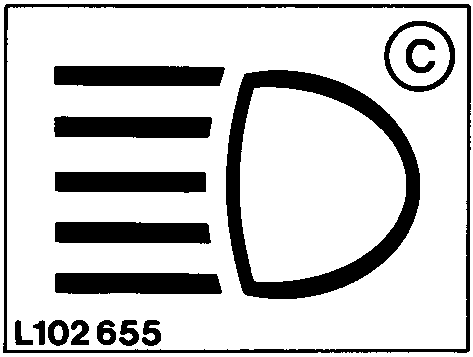

Indicator light (C) will glow when headlight switch is in high beam position.

IMPORTANT: If the engine is switched off, the light and high-beam headlight remain on and do not automatically switch off. If the engine is going to be in standstill for an extended period, switch off the light and high-beam headlights in advance.
