Vehicle Controls with PowrQuad™ Transmission

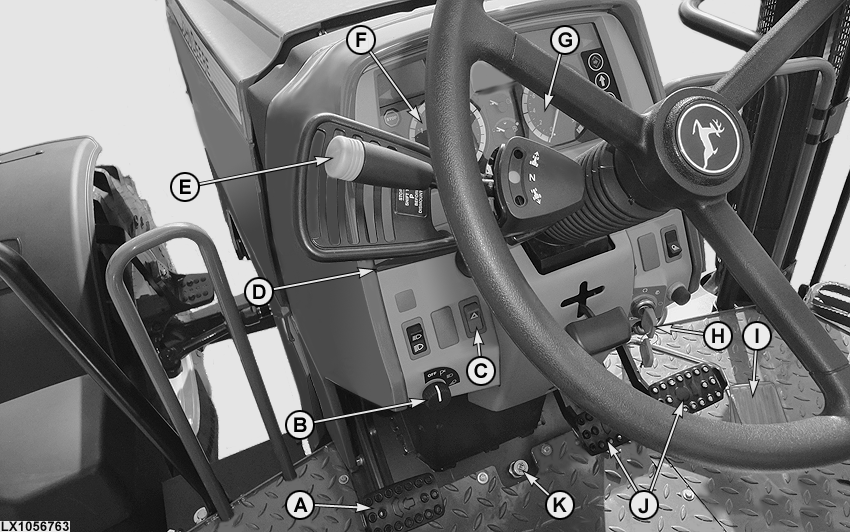

LX1056763-UN-24OCT12

Vehicle Controls - Foot Brake with Steering Brake (two Brake Pedals) Shown

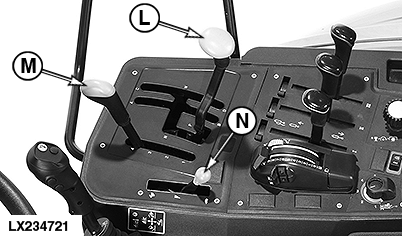

LX234721-UN-18JUN15

Vehicle Controls – PowrQuad™ Transmission

A - Clutch Pedal

B - Light Switch

C - Hazard Warning Light Switch

D - Turn-Signal Lever

E - Reverse Drive Lever

F - Revolution Counter

G - Speedometer

H - Key Switch

I - Foot Throttle

J - Foot Brake with Steering Brake (Two Brake Pedals)

K - Differential Lock¹

L - Range-Shift Lever

M - Gear-Shift Lever

N - Hand Throttle

NOTE: The foot brake may or may not have a steering brake.

• With Steering Brake — Two Brake Pedals
• Without Steering Brake — One Brake Pedal
