Coolant Heater

LX234661
LX234661-UN-16APR15

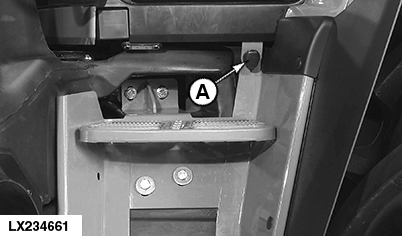

Connect connector (A) of coolant heater to a 230-volt or 110-volt power source.

NOTE: If equipped, the transmission oil preheater and charge pump preheater are also operated by means of connector (A).

At an ambient temperature of -15 °C (5 °F), the heating process takes approx. 2 hours. Extend the heating period if ambient temperature is lower.

IMPORTANT: Observe the electrical voltage of the local power mains.

OULXA64,0003693-19-20150413
