Operating PTOs

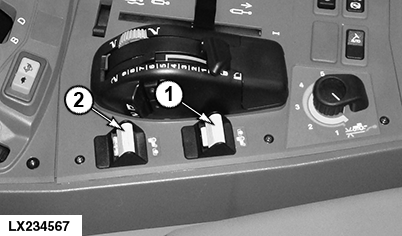

LX234567-UN-12MAR15

Tractor with Cab Shown

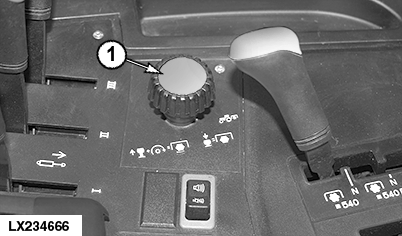

LX234666-UN-17APR15

Tractor without Cab Shown

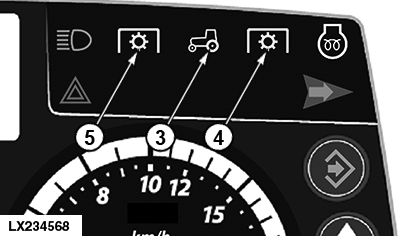

LX234568-UN-16FEB15

1 - Rear PTO Switch

2 - Front PTO Switch

3 - PTO Indicator Light

4 - Rear PTO Indicator Light

5 - Front PTO Indicator Light

CAUTION: Always disengage the PTO when not in use.

CAUTION: High-inertia implements do not come to a standstill the moment a PTO is shifted to the disengaged position. Do NOT approach the implement while it is coasting down. Do not work on the implement until it has stopped.

To switch on PTOs, press switch (1) or (2) down and then forward. The PTO starts up, and indicator lights (3) and (4) or (3) and (5) light up.

The current speeds of the PTOs are displayed on the PTO page of the digital display.

To switch off the PTOs, pull switch (1) or (2) back. Indicator lights (3) and (4) or (3) and (5) go out.

NOTE: If the engine is shut off and then restarted while the PTO is running, the PTO will not operate.

To continue working, switch off the PTO and switch it on again.
