Access to Fuses

LX1056713-UN-12JUL12

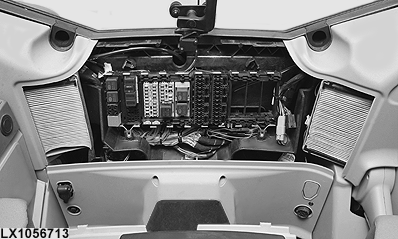

Fuses for Tractors with Cab (LCS)

LX234619-UN-09APR15

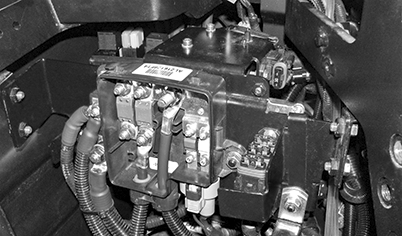

Fuse Box behind Access Step (PLB)

LX1057469-UN-22AUG14

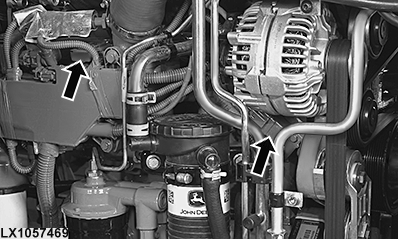

Fuse on Engine

The fuse and relay box of the Load Center Secondary (LCS) circuit is located behind the operator's seat.

The fuses and relays of the Power Link Box (PLB) are located behind the right access step.

The fuse and relay of the electrical starting aid are located on the right side of the engine.
