Front-Wheel Drive Axle - Final Drives with Brake, Oil Change

LX234640-UN-07APR15

LX234639-UN-07APR15

CAUTION: The oil may be under pressure when it is hot. Remove the drain screw slowly.

NOTE: Replace oil in the final drives with brakes after the first 100 hours, the first 500 hours and thereafter every 500 hours of operation.

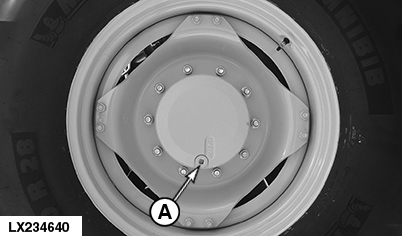

1. Turn wheel so that drain screw (A) is at the bottom. Remove screw, and drain the oil.

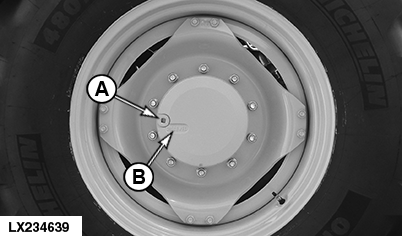

2. Turn the wheel through 90° so that the line marked OIL LEVEL (B) is horizontal, and fill with fresh oil at drain screw bore. Oil must be level with drain screw bore.

3. Put a new O-ring on the drain screw.

4. Screw in the drain screw and tighten it to 90 N•m (66 lb.-ft.).

Oil to be used	Hy-Gard™ transmission/hydraulic oil. See also Section 80 (Fuel, Lubricants, Hydraulic Oil and Coolant).
Capacity	See “Capacities” of relevant tractor in Section 145 (Specifications).
