Check Coolant Level - 4-Cylinder Engines

LX234660
LX234660-UN-16APR15

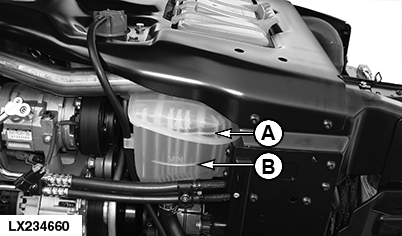

Coolant level should be close to the max. mark (A).

It must under no circumstances fall below the min. mark (B).

Top up if necessary. See Change the Coolant in Service / Every 6000 Hours.

OULXA64,00036C8-19-20170113
