Additional Oil Reservoir

LX234673-UN-20APR15

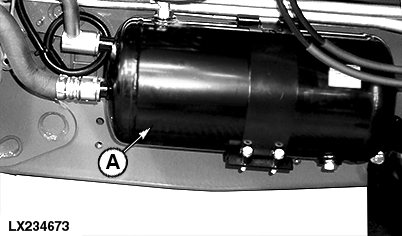

An additional oil reservoir (A) allows more oil to be withdrawn.

The maximum amount of oil that may be withdrawn is listed below.

Maximum permissible oil withdrawal
27 L (7.1 U.S. gal.)

The additional oil may be used with large tipping trailers and in other applications which require a larger amount of oil.

NOTE: An additional oil reservoir brings advantages compared with overfilling of the transmission. See Oil Withdrawal in Section Specifications.
