Dimensions - 6110M to 6130M with Open Operator's Station and Front-Wheel Drive Axle

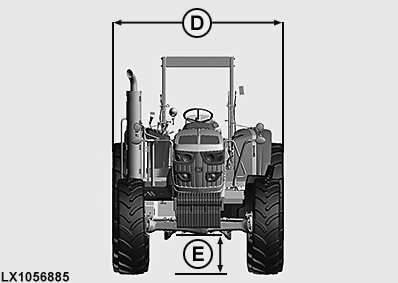

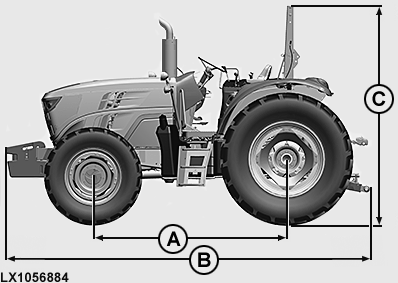

LX1056884-UN-07MAY13
LX1056885-UN-07MAY13
|
Open Operator's Station |
||
|
A - Wheel Base.............. |
2580 mm |
(101.6 in.) |
|
B - Length |
|
|
|
• Basic weight 110 kg to draft link in horizontal position .............. |
4485 mm |
(176.6 in.) |
|
• Front weight 1150 kg to draft link in horizontal position .............. |
4900 mm |
(192.9 in.) |
|
C - Height |
||
|
- Maximum total height from ground to extended ROPS (without beacon light), with rear tires with an SRI of: |
||
|
• SRI 525 .............. |
2572 mm |
(101.3 in.) |
|
• SRI 625 .............. |
2672 mm |
(105.2 in.) |
|
• SRI 675 .............. |
2722 mm |
(107.2 in.) |
|
• SRI 700 .............. |
2747 mm |
(108.1 in.) |
|
• SRI 725 .............. |
2772 mm |
(109.1 in.) |
|
• SRI 750 .............. |
2797 mm |
(110.1 in.) |
|
• SRI 775 .............. |
2822 mm |
(111.1 in.) |
|
• SRI 800 .............. |
2847 mm |
(112.1 in.) |
|
• SRI 825 .............. |
2872 mm |
(113.1 in.) |
|
• SRI 875 .............. |
2922 mm |
(115.0 in.) |
|
D - Width |
||
|
• Front axle, two parts - flange to flange .............. |
1680 mm |
(66.1 in.) |
|
• Front axle, three parts - flange to flange .............. |
1780 mm |
(70.1 in.) |
|
• Front axle - maximum tread width without extension .............. |
2015 mm |
(79.3 in.) |
|
• Rear axle - flange to flange .............. |
1552 mm |
(61.1 in.) |
|
• Maximum width for road travel .............. |
2550 mm |
(100.4 in.) |
|
E - Ground Clearance |
||
|
- Maximum ground clearance at front-wheel drive axle, with front tires with an SRI of: |
||
|
• SRI 425 .............. |
288 mm |
(11.3 in.) |
|
• SRI 525 .............. |
388 mm |
(15.3 in.) |
|
• SRI 550 .............. |
413 mm |
(16.3 in.) |
|
• SRI 575 .............. |
438 mm |
(17.2 in.) |
|
• SRI 600 .............. |
463 mm |
(18.2 in.) |
|
• SRI 625 .............. |
488 mm |
(19.2 in.) |
|
• SRI 650 .............. |
513 mm |
(20.2 in.) |
|
• SRI 675 .............. |
538 mm |
(21.2 in.) |
|
• SRI 725 .............. |
588 mm |
(23.1 in.) |
|
• SRI 750 .............. |
613 mm |
(24.1 in.) |
|
• SRI 775 .............. |
638 mm |
(25.1 in.) |
|
- Maximum ground clearance at differential housing with drawbar, with rear tires with an SRI of: |
||
|
• SRI 525 .............. |
248 mm |
(9.8 in.)1 |
|
• SRI 625 .............. |
348 mm |
(13.7 in.)1 |
|
• SRI 675 .............. |
398 mm |
(15.7 in.)1 |
|
• SRI 700 .............. |
423 mm |
(16.7 in.)1 |
|
• SRI 725 .............. |
448 mm |
(17.6 in.)1 |
|
• SRI 750 .............. |
473 mm |
(18.6 in.)1 |
|
• SRI 775 .............. |
498 mm |
(19.6 in.)1 |
|
• SRI 800 .............. |
523 mm |
(20.6 in.)1 |
|
• SRI 825 .............. |
548 mm |
(21.6 in.)1 |
|
• SRI 875 .............. |
598 mm |
(23.5 in.)1 |
IMPORTANT: Ground clearance and height of the tractor depend on the tire manufacturer, tire pressure, ballast, trailer hitches, implements attached, etc.
Before driving through gates, tunnels, bridges etc., the height of the tractor must be checked.
All dimensions are valid for tractors whose tire combination has been selected so that the main frame is horizontally oriented.
|
1 On versions
with pick-up hitch, the ground clearance is reduced by 5 cm (2 in.)
|
