Dimensions - 6135M with Operator's Cab and Front-Wheel Drive Axle

LX234690-UN-21APR15

LX234691-UN-21APR15

	Cab without Low Profile

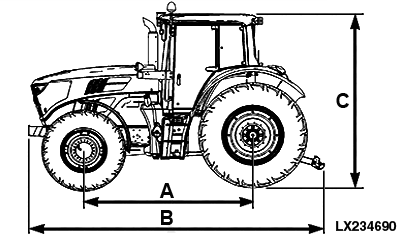

A - Wheel Base..............	2765 mm	(108.9 in.)
B - Length
• Basic weight 110 kg to draft link in horizontal position ..............	4688 mm	(184.6 in.)
• Front weight 1150 kg to draft link in horizontal position ..............	5103 mm	(200.9 in.)
C - Height
- Maximum total height from ground to cab roof (without beacon light), with rear tires with an SRI of:
• SRI 800 ..............	2853 mm	(112.3 in.)
• SRI 825 ..............	2878 mm	(113.3 in.)
• SRI 875 ..............	2928 mm	(115.3 in.)

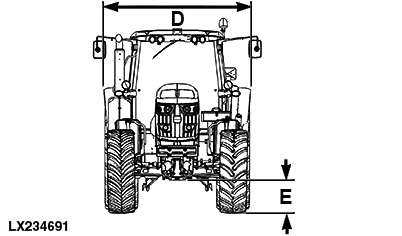

D - Width
• Front axle, two parts - flange to flange ..............	1740 mm	(70.1 in.)
• Front axle, three parts - flange to flange ..............	1940 mm	(76.4 in.)
• Front axle - maximum tread width without extension ..............	2250 mm	(88.6 in.)
• Rear axle - flange to flange ..............	1664 mm	(65.5 in.)
• Maximum width for road travel ..............	2550 mm	(100.4 in.)
E - Ground Clearance
- Maximum ground clearance at front-wheel drive axle, with front tires with an SRI of:
• SRI 600 ..............	455 mm	(17.9 in.)
• SRI 625 ..............	480 mm	(18.9 in.)
• SRI 650 ..............	505 mm	(19.9 in.)
• SRI 675 ..............	530 mm	(20.9 in.)
- Maximum ground clearance at differential housing with drawbar, with rear tires with an SRI of:
• SRI 800 ..............	523 mm	(20.6 in.)1
• SRI 825 ..............	548 mm	(21.6 in.)1
• SRI 875 ..............	598 mm	(23.5 in.)1

IMPORTANT: Ground clearance and height of the tractor depend on the tire manufacturer, tire pressure, ballast, trailer hitches, implements attached, etc.

Before driving through gates, tunnels, bridges etc., the height of the tractor must be checked.

All dimensions are valid for tractors whose tire combination has been selected so that the main frame is horizontally oriented.
