Two-Piece Front Axle — Notes on Adjusting the Fenders

LX211135-UN-28MAY14

LX1053703-UN-29MAY12

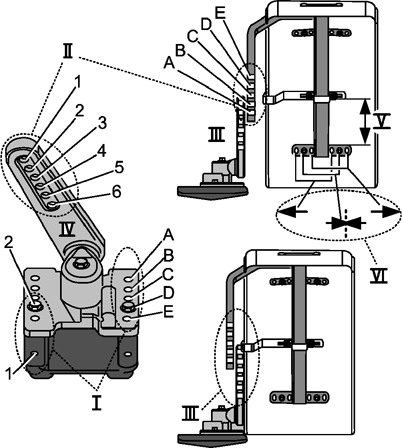

Position of Fender (OUT) — Console on Outside of Base

LX1053704-UN-29MAY12

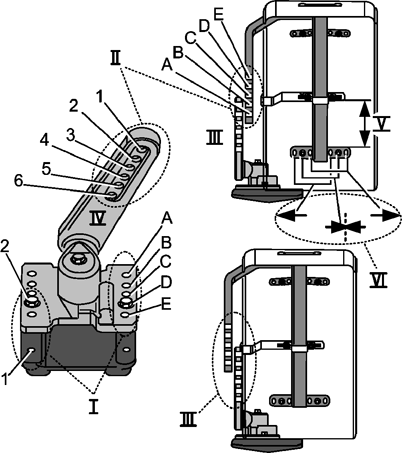

Position of Fender (IN) — Console on Inside of Base

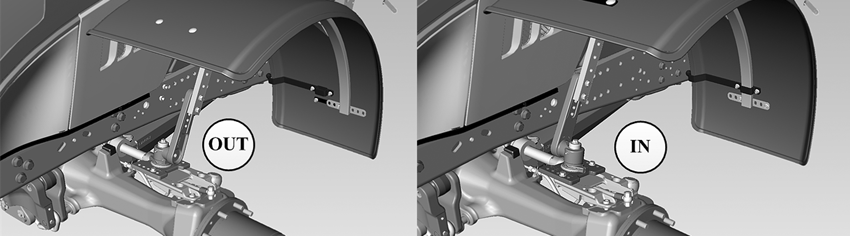

Installed Position of Fender (OUT)			Installed Position of Fender (IN)
I	Console on outside of base - (OUT)		I	Console on inside of base - (IN)
II	Height at which fender is set on cast arm		II	Height at which fender is set on cast arm
III	Fender to cast arm - to center (CTR)		III	Fender to cast arm - to wheel (TIRE)
IV	Cast arm to console - (UP/DOWN) IMPORTANT: The cast arm must always point to the rear.		IV	Cast arm to console - (UP/DOWN) IMPORTANT: The cast arm must always point to the rear.
V	Radial setting of fender [mm]		V	Radial setting of fender [mm]
VI	Fender on Bracket - In/Center/Out (IN/CTR/OUT)		VI	Fender on Bracket - In/Center/Out (IN/CTR/OUT)

IMPORTANT: The required setting values of the fenders can be found in one of the following tables:

• “Two-Piece Front Axle — Adjust the Pivoting Fenders and Steering Stop”

See corresponding front axle model on the following pages.

Adjust the fenders according to the drawing and to the specified tire sizes and tread widths as well as the steering stops required for this.

Move the fenders to the recommended position; this will prevent damage to the fenders caused by them coming into contact with the wheel or the engine hood.

IMPORTANT: The positions listed below are merely recommendations. Depending on tire size, fender size and the position of the steering stops, it may be necessary to move the fenders to positions different from those listed below.

IMPORTANT: Settings listed are approximate, due to variations in tire size.

The steering stops are set correctly if a sufficient clearance can be ensured between the tires and frame and tractor components when steering is fully turned and the axle is oscillated to its full extent. See also “Preventing Front Wheel or Fender Contact with Tractor Components” in this Section.
