Reduce Fuel Consumption


Proper maintenance

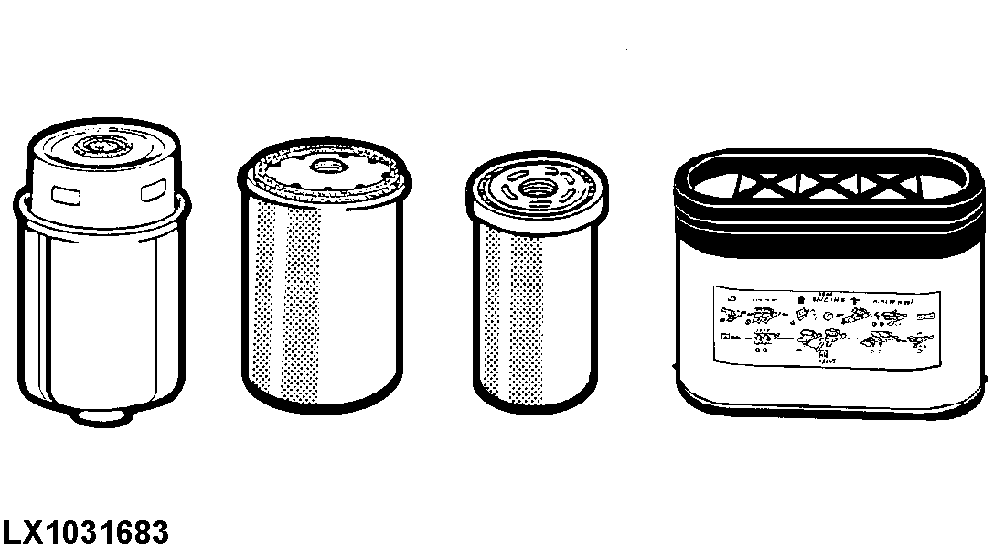

LX1031683
LX1031683-UN-27MAR03

Replace Air Filter Insert, Fuel, Engine Oil and Transmission/Hydraulic Oil Filters on time (refer to Maintenance Section).

Use only John Deere filters.

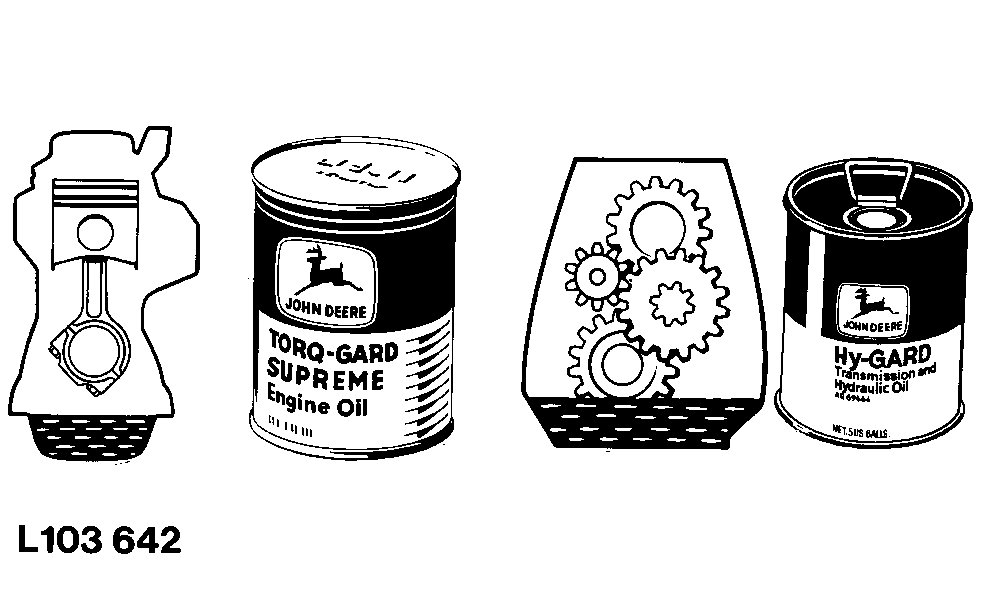

L103642
L103642-UN-15AUG94

Use only the recommended oils and lubricants (refer to Fuels, Lubricants, Oils, and Coolants section).

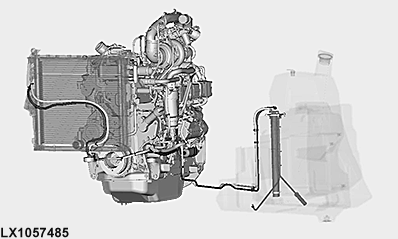

LX1057485
LX1057485-UN-04DEC14

Have the fuel system checked regularly by an authorized dealer.

LX1049977
LX1049977-UN-18MAY11

Have the function of the hitch's draft link control checked regularly by an authorized dealer.


Drive with the correct tire pressure

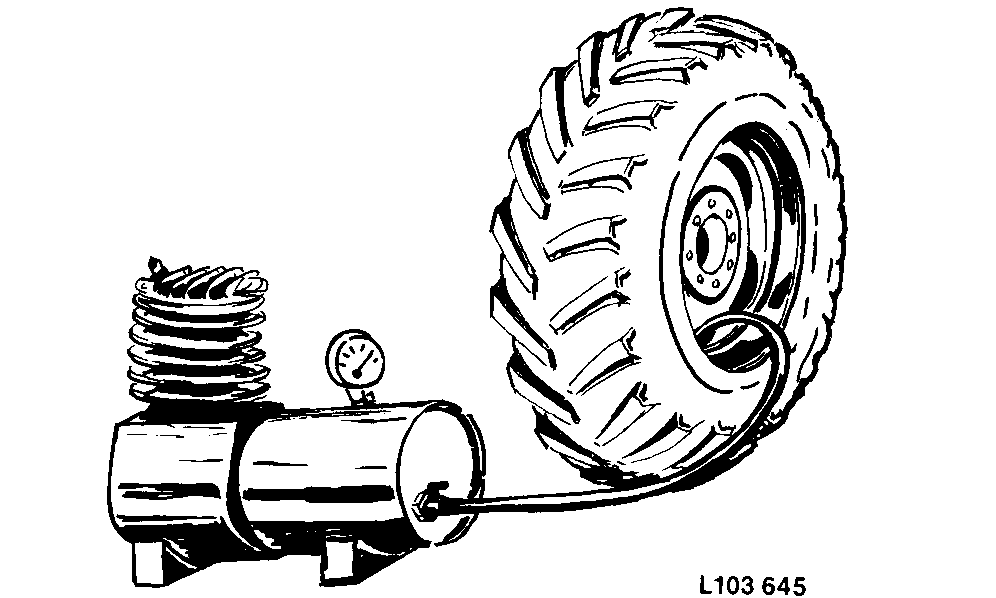

L103645
L103645-UN-15AUG94

Adjust tire pressure to the workload (refer to authorized dealers or tire manufacturer).


Choose correct ballast

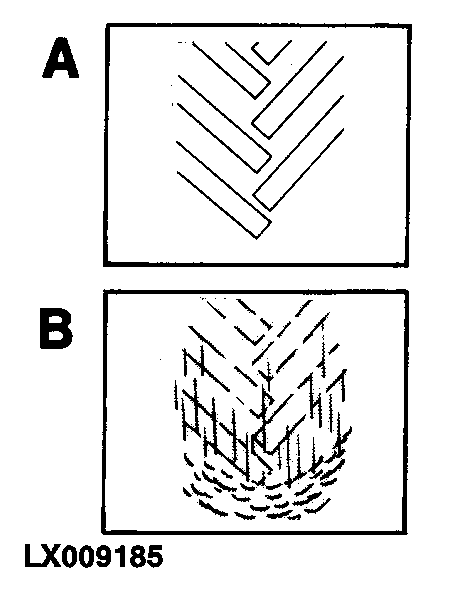

LX009185
LX009185-UN-01SEP94

LX009186
LX009186-UN-01SEP94

A - Too Much Ballast

B - Too Little Ballast

C - Correct Ballast

Select ballast sot that there is 10-15 % slippage. Reduce ballast is the workload is light.


Select correct gear

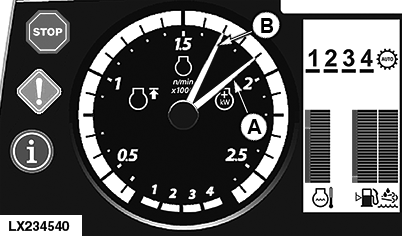

LX234540
LX234540-UN-27FEB15

Always drive in highest possible gear with reduced engine speed.

Select the gear so that the speed (A) of the unloaded motor is reduced by 150-250 rpm (B) during operation.

NOTE: Reduce the speed to less than 2000 rpm for light workloads. Select the gear so that the speed is reduced by 200-300 rpm.

OULXA64,00037BF-19-20151202
