Tread Widths for Rear Wheels with Rims for 2 Positions - Flanged Axle (6145M)

IMPORTANT: Comply with instructions on rear-wheel tread adjustment with rims for 2 positions.

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.).

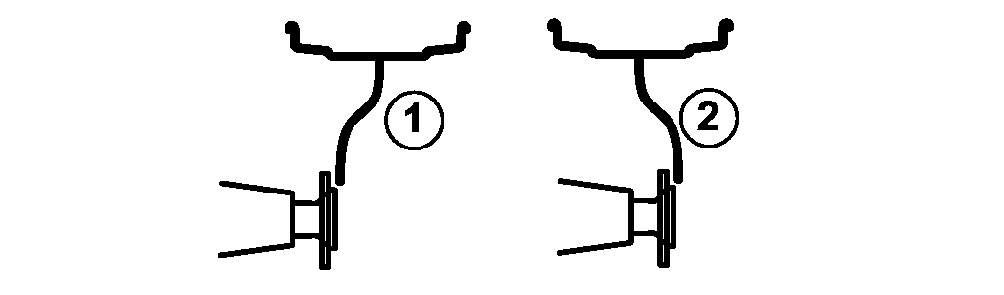

LX1053403-UN-12MAR12

		Tread width setting on delivery	Rear Wheel Tread Widths Arrangement of rim and wheel dish					Tread width setting on delivery	Rear Wheel Tread Widths Arrangement of rim and wheel dish
Tires:			1	2		Tires:			1	2
16.9R38	mm	1812	1812	—**		520/85R38	mm	1812	1812	—**
	in.	71.34	71.34				in.	71.34	71.34
18.4R38	mm	1812	1812	—**		540/65R38	mm	1812	1812	—**
	in.	71.34	71.34				in.	71.34	71.34
20.8R38	mm	1812	1812	—**		540/80R38 -R4	mm	1812	1812	—**
	in.	71.34	71.34				in.	71.34	71.34
420/85R38	mm	1812	1812	1540		580/70R38	mm	1812	1812	—**
	in.	71.34	71.34	60.63			in.	71.34	71.34
480/70R38	mm	1812	1812	—**		600/65R38	mm	1812	1812	—**
	in.	71.34	71.34				in.	71.34	71.34
480/80R38 -R4	mm	1812	1812	—**		650/65R38	mm	1812	1812	—**
	in.	71.34	71.34				in.	71.34	71.34
520/70R38	mm	1812	1812	—**		650/65R42 -R4	mm	1870	1870	—**
	in.	71.34	71.34				in.	73.62	73.62
** Installation in this position is not allowed
