Three-Piece Front Axle (Version 1) — Tread Widths for Front Wheels with Rims for 2 Positions - 6135M

LX1057503-UN-13MAY15

Three-Piece Front Axle

LX1053400-UN-07MAR12

IMPORTANT: Comply with instructions on front-wheel tread adjustment with rims for 2 positions.

IMPORTANT: The following tables apply only for wheels that have standard rims. Non-standard rims may be pressed in to different depths. In consequence, the values shown in the tables will NOT be valid.

IMPORTANT: After setting the tread, the fender and the steering stop need to be adjusted. Afterwards oscillate the front axle with fully turned steering. If the wheels or fenders contact tractor components, correct the steering stop.

See in this section:

1. “Three-Piece Front Axle (Version 1) — Overview of Axle Category and Axle Type”
2. “Three-Piece Front Axle (Version 1) — Adjust the Fixed Fenders and Steering Stop”
3. “Preventing Front Wheel or Fender Contact with Tractor Components”

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.).

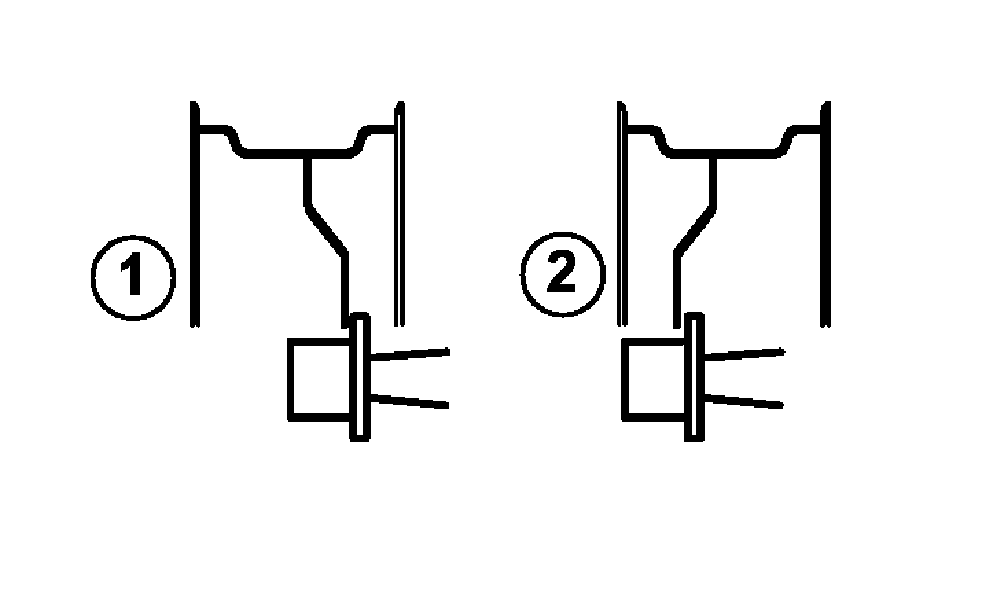

		Tread widths on delivery	Front wheel tread widths Arrangement of rim and wheel dish					Tread widths on delivery	Front wheel tread widths Arrangement of rim and wheel dish
Tires:			1	2		Tires:			1	2
13.6R28	mm	1842	2042	1842		420/70R28	mm	1840	2040	1840
	in.	72.52	80.39	72.52			in.	72.44	80.31	72.44
14.9R24	mm	1840	2040	1840		420/85R24	mm	1842	2038	1842
	in.	72.44	80.31	72.44			in.	72.52	80.24	72.52
14.9R28	mm	1840	2040	1840		420/85R28	mm	1838	2042	1838
	in.	72.44	80.31	72.44			in.	72.36	80.39	72.36
16.9R24	mm	1842	2038	1842		440/80R24 -R4	mm	1842	2038	1842
	in.	72.52	80.24	72.52			in.	72.52	80.24	72.52
16.9R28	mm	1838	2042	1838		440/80R28 -R4	mm	1838	2042	1838
	in.	72.36	80.39	72.36			in.	72.36	80.39	72.36
340/85R28	mm	1842	2042	1842		480/65R24	mm	1842	2038*	1842
	in.	72.52	80.39	72.52			in.	72.52	80.24*	72.52
380/70R28	mm	1842	2042	1842		480/65R28	mm	1838	2042*	1838
	in.	72.52	80.39	72.52			in.	72.36	80.39*	72.36
380/85R24	mm	1840	2040	1840		480/70R24	mm	1842	2038*	1842
	in.	72.44	80.31	72.44			in.	72.52	80.24*	72.52
380/85R28	mm	1840	2040	1840		480/70R28	mm	1838	2042*	1838
	in.	72.44	80.31	72.44			in.	72.36	80.39*	72.36
400/80R28 -R4	mm	1840	2040	1840		540/65R24	mm	1842	2038*	1842
	in.	72.44	80.31	72.44			in.	72.52	80.24*	72.52
420/70R24	mm	1840	2040	1840		540/65R28	mm	1838	2042*	1838
	in.	72.44	80.31	72.44			in.	72.36	80.39*	72.36
* Total vehicle width greater than 2.55 m; the regional road traffic licensing regulations must be observed.
