Front Hitch - Center Link Positions

LX234777-UN-25NOV15

LX234783-UN-30NOV15

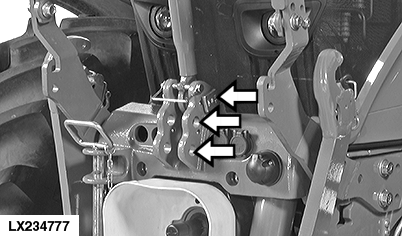

The center link can be attached to the tractor in any one of three positions.

Use the lowest position for work that requires a larger implement tilt angle and a lower lifting force.

Use the uppermost position for work that requires a smaller implement tilt angle and a higher lifting force.

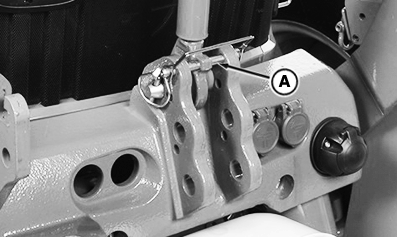

IMPORTANT: When not using the center link, position the center link in the center link bracket and secure with locking pin (A). Make sure that the safety clip of the locking pin (A) is positioned correctly.
