CommandQuad™ PLUS — FieldCruise™, Limiting the Engine Speed

LX266786-UN-01FEB16

LX266671-UN-15DEC15

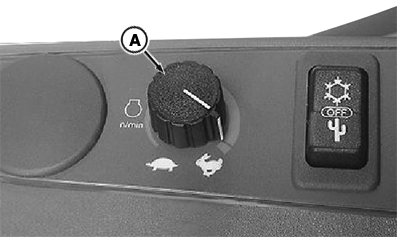

A - Potentiometer for FieldCruise™ Function

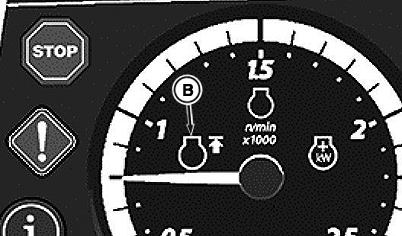

B - FieldCruise™ Indicator Light

Maximum engine speed in the FieldCruise™ function can be limited for PTO operation using potentiometer (A). Move the hand throttle lever to full throttle, then reduce engine speed using potentiometer (A). In the lowest setting, engine speed is limited to 1050 rpm. Changes to cruise control take effect immediately.

In the highest setting, the engine can run at maximum speed. Individual engine speed limits can be set between these two positions. If no PTO operation is taking place, potentiometer (A) should be in its maximum speed position or in the “Off” position.

NOTE: If FieldCruise™ has been activated, FieldCruise™ remains active when the engine is restarted.

If FieldCruise™ is switched on, indicator light (B) lights up on the instrument panel.
